Learn about our Ohio Special -- a 600 HP energy efficient thermocoil boiler with a footprint that is 40-60% smaller than conventional fire-tube boilers.
Thermogenics' president Bryan Heppell describes the innovation that goes into Thermogenics' Coil Tube Steam Boilers.
Thermogenics recently teamed up with the Greening Health Care program to co-author its Best Practices Guide for Energy Efficient Boiler Plant Design, Operation and Control.
Based on examining 15 GHC member hospitals, the study identified several areas of focus for hospital facility managers to improve their overall operations. The following are five key takeaways:
This will allow for the extraction of additional heat from the hot flue gases and transfer it to the boiler feedwater or water return. Look for high make-up water applications for maximum results.
These smaller efficient boilers are sized for the actual summer daytime loads. This is an extension of high turndown ratios for not just the boiler but the system as a whole.
Traditionally, hospitals set up one central steam plant. However, to maximize efficiency, boilers should be located as close to their respective loads as possible. A combination of hot water and steam plants can help achieve this objective.
While most newer boilers have this standard, for older units this retrofit will provide quick and cost effective results.
Forced draft fans are the largest electricity consumers in the boiler plant. To significantly lower electricity consumption, FD fans should be retrofitted with variable frequency drives (VFDs). In addition, VFDs provide precise combustion air volume control. Be sure to investigate energy incentives, particularly on larger fans.
To learn more about these suggestions and the steps you can take immediately to improve your boiler room efficiency please contact us at: email@example.com

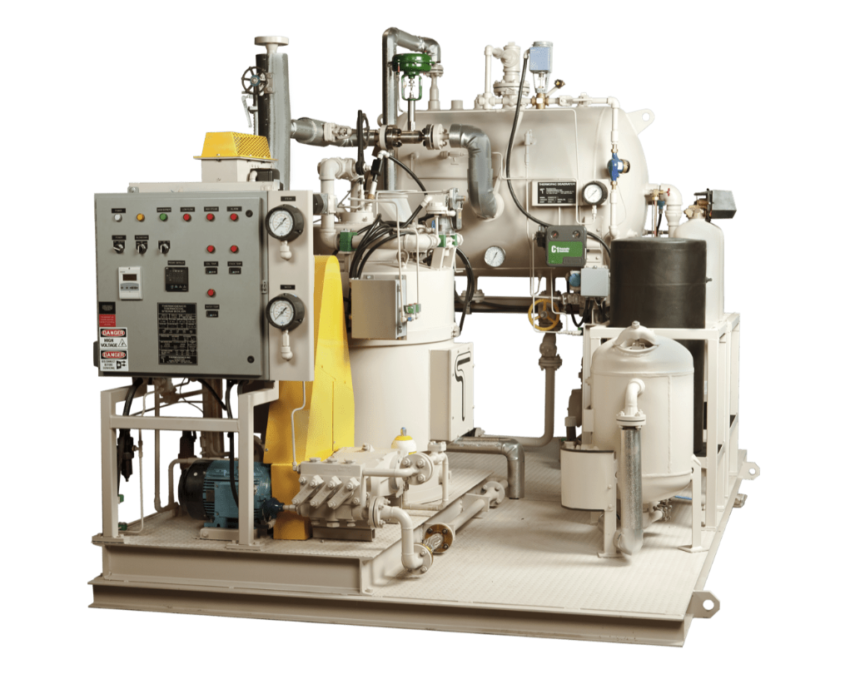

As any valve testing shop operator knows, boiler reliability is mission-critical for their business’ health. Due to critical client service contracts, if a boiler goes down at any time, the entire operation is at risk. A reliable boiler is paramount in this fast-paced industry, with many clients expecting 24-hour turnaround on critical valves. That’s why many of the requests we receive from our clients are based on maintaining or repairing boilers ahead of an important shutdown assignment or National Board VR certification.
In our experience, most high-pressure boilers fail because of problems with the ratio between fuel and water flow. Small issues like scaling, pump issues, or improper tuning can lead to big problems if left uncorrected. Extended hours of operation under these conditions can cause the boiler to overheat, create poor steam quality, or ultimately shut down or fail. That’s when our clients rely on us to get their boilers up and running again.
This experience and insight inspired Thermogenics’ mechanical engineers to equip our boilers with advanced, one-of-a-kind monitoring systems that control the fuel to water ratio into the boiler.
Our advanced monitoring systems precisely control the amount of water released into the boiler’s coils, and carefully matches the boiler’s firing rate to the controlled volume of water. This unique control system delivers a precise and repeatable proportional profile of proper evaporation rates. It also produces high-quality steam.
Constant temperature monitoring of the tube outlets and steam temperature ensure the tubes are not entering a superheated condition.
For valve testing shop boilers, our control systems help minimize or eliminate downtime and service calls. It ensures that mission-critical tasks, like valve testing in a moments notice are achievable.
To learn more about high-pressure steam boiler maintenance and about the Thermogenics boiler advantage, please contact us at: firstname.lastname@example.org
Proper service and maintenance of your boiler will help prevent breakdowns. Complete this Boiler Audit to help determine your next service call:
If any of these are true, contact us today about scheduling a call or consultation.
Due to their unique design, Thermocoil boilers have an industry-leading 10-1 turndown ratio. They can shift from full heat to low heat quickly, even automatically, without a full shutdown.Read the full article
Read about the role our temporary rental boiler played in helping a local hospital maintain uninterrupted operation while they gutted and retrofitted their existing boiler room. These units are also ideal for facility managers needing to supplement or replace existing on-site boilers during a renovation or replacement.Read the full article
Chicago, Illinois October 30 2018. Thermogenics, Inc. (“Thermogenics” or the “Company”), a leading manufacturer and service provider of industrial coiled tube steam, hot water, and thermal fluid boilers, announced the opening of its new Chicago office today to serve the growing demand for both their high efficiency equipment and service capabilities.
The Chicago office expands the Company’s existing U.S. presence in Cincinnati, Ohio, where they have been supporting customers since 2010, and helps better serve the Food & Beverage, Institutional, and Manufacturing markets in the Midwest.
Thermogenics also announced the addition of John Jackson, a seasoned electro-mechanical specialist with more than 20 years experience servicing a wide range of boiler and related equipment. Jackson will be leading new business development, as well as serving the Company’s existing customer accounts.
“Many of today’s commercial and industrial operations are looking for more energy efficient and cost effective ways of providing steam for their production and heating needs,” said Ross Garland, CEO, Thermogenics. “Our new Chicago office will help raise awareness of our reputation as a leading manufacturer of high quality boilers and as an experienced service provider for coiled tube boilers, burners, and controls”.
Thermogenics is a leading manufacturer of coiled tube steam, hot water and thermal fluid boilers and related equipment. The product portfolio is primarily used for industrial, commercial and institutional applications across North America. The Company also provides complimentary parts and 24/7 service support via factory-trained technicians and manages a fleet of unique rental equipment to serve temporary requirements. In addition to its new Chicago office, the Company has offices in Cincinnati, Ohio and Ontario, Canada.
National Sales & Service Manager
Vice President, Sales & Marketing
I was recently asked to share the history of Thermogenics – a simple enough task given that I’ve been with the Company for more than 30 years. As I started recounting some of the milestones, I was reminded that our Company’s history is truly a great story and something I’m very proud to be a part of.
Back in the early 1970’s, building large-scale steam boilers had one major challenge – once manufactured, the equipment required constant attendance while operating. As such, each boiler was legally required to have an operating engineer physically present to monitor the boiler. This was a risk mitigation strategy to ensure the building and other staff were protected from the possibility of any catastrophic boiler failure(s) however, occupied a skilled resource whose time could have otherwise been spent more effectively elsewhere in the operations.
A solution to this challenge came in the form of new, low volume, coil-tube boilers which, by definition, held less water content and had a much smaller footprint. These specific features, amongst others, were communicated by the original founder of Thermogenics during a successful case presentation to government officials. The thesis was that coil-tube boilers were indeed safe enough on their stand-alone basis of design and therefore, do not require constant monitoring by operating engineers.
In fact, regulatory agency tests later revealed just how little water was in a Thermocoil, showing that the operating water content for the boilers was actually lower than the published amount of 40 Imperial gallons. For example, the 350HP Thermocoil boiler only required 26.6 gallons of operating water content, a small fraction of what the older design, pre-coil conventional boilers required.
Thermogenics as a Company was originally established in 1975 as a customer-first, service-based business that provided maintenance and repair services for the growing installed base of coil-tube boilers. In 1980 however, the Company was convinced they could also manufacture a high quality boiler product of their own. The Company envisioned a more efficient boiler with a smaller footprint and a product that required less service calls; this resulted in the development of the Company’s first "Thermocoil" design.
In September of 1982, Thermogenics shipped the first new Thermocoil boilers to a rubber manufacturer, a leading supplier of NHL hockey pucks. That shipment began a new chapter in Thermogenics’ story and the Company officially bolstered its boiler service business to include boiler design, manufacture and sale. The appetite for coil-tube boilers continued to grow, as more commercial institutions looked to Thermogenics for reliable, high-quality boilers that also presented opportunity to re-assign skilled operating engineers elsewhere in the plant operations.
Thermocoil boilers proved to be very reliable from their first designs. In fact, that first Thermocoil boiler is still in operation today. We installed the boiler here in Toronto where it produced steam for 20 years at a rubber manufacturing facility before being sold as used equipment to a company in the UK where it now operates in a steel mill – we learned that Thermocoil’s have a strong shelf life and travel well!
The rubber manufacturer’s application, amongst a number of other boiler projects, provided proof of concept and set the Company up well to be successful in bidding on and designing solutions for some higher profile customers in the early 1980s.
Specifically, in 1984, Thermogenics expanded its operations with a major contract award. The Canadian Navy commissioned the Company in a joint, design-build venture with a UK-based manufacturer – the mandate was to build a large number of boilers to outfit their new frigate program.
This notable milestone was followed by another major contract to re-build and service VIA Rail’s steam generators. For context, in the days of steam locomotives, VIA used excess steam to heat their trains’ passenger cars. After switching to diesel locomotives, VIA built dedicated steam cars housed with boiler equipment to heat the passenger cars. The contract secured by Thermogenics was to overhaul and repair all of VIA’s steam equipment on its trains.
Both projects were big wins for the Company.
These major contracts ushered in an era of rapid expansion for Thermogenics. In 1987, the Company built a new, dedicated facility in Aurora, Ontario, Canada running 24/7 to support the VIA contract along with additional equipment orders.
This was also the time when I joined Thermogenics.
In 1988, I was the OEM sales representative for an industry-leading boiler pump company but found myself looking for a new challenge. At the time, I was regularly selling pumps to Thermogenics and as such, had the opportunity to witness, first hand, some of this aforementioned business expansion and customer growth. The Company seemed to be offering exactly what I’d been looking for and as such, I joined their growing team and never looked back.
Soon after, in 1993, Thermogenics ended up acquiring my former employer’s pump business. With this acquisition and the development the Company’s our own deaerator, Thermogenics was now officially a one-stop-shop to supply everything required in the boiler room.
In 1996, Thermogenics shifted focus onto an additional acquisition only this time, a larger, Quebec-based boiler company. Integrating and operating this newly acquired business ended up creating challenges for Thermogenics and our leadership team. The Company had just absorbed a large, new boiler company in a different jurisdiction with its own operating priorities and different customer clientele – we had our hands full for a period of time!
Around this same period, our customer VIA had transitioned to electric heat which caused the existing contract to end. To offset this loss, Thermogenics set sights on growing its customer base in the United States. This was achieved primarily by following our Canadian customers as they expanded south of the border and supporting requests for Thermogenics equipment at their US-based facilities. We responded to this need and, since 1996, have consistently grown our North American installed base.
In 2002, a partner and I successfully acquired the Company from the existing owner. We (and our customers) were confident in the skill of Thermogenics’ people and the quality of Thermogenics’ equipment. Our goal was to see Thermogenics reach its true potential by creating a newly re-focused Company, serving both US and Canadian markets directly.
We got to work almost immediately and were rewarded for our efforts. New customers, orders and contracts were flowing, especially in the US market. For example, in 2004, we secured a large hospital contract in the state of Ohio to replace 14 existing boilers with 4 high-quality Thermogenics boilers. This new equipment would significantly reduce the footprint required in the mechanical room and further, drastically reduce maintenance costs with the steam efficiency of the boilers – the features of the Thermocoil were proving to be attractive across a variety of applications.
In the late 2000s, Thermogenics continued its R&D efforts and developed a unique, one-of-a-kind rental steam boiler solution. Due to the smaller footprint of Thermogenics’ equipment, we were able to fit a 500HP Thermocoil boiler into a standard shipping container, rentable for any purpose where customers might need temporary steam or hot water (e.g. plant shutdowns, boiler backups).
In 2012, we took another step forward using the concept from the rental units and developed a new design of Thermocoil boilers, custom-made for these containerized applications. We ended up supplying several of these units to the power generation industry and continue to support that market today.
As Thermogenics continued expansion into the U.S. – this time with the sale of 15+ 600HP boilers to University campuses – the Company was working in parallel to expand its global reach outside of North America. In 2009, Thermogenics was successfully contracted to produce a pair of 50 million BTU/hr 2,850psi boilers for an energy project in South America. Not without some complicated shipping logistics, the boilers were eventually prepared for ocean travel on a barge before arriving at the customer site. This was a successful project for the Company and proved Thermogenics was able to service complex, international boiler requirements.
Thermogenics’ reputation was growing, particularly in the U.S. energy belt, and as such, service requests began to originate from valve testing facilities. Valve test companies use specialized steam boilers to provide valve fleet testing services to the Oil & Gas sector and play a key role in quality assurance and compliance. The industry needs to maintain its equipment at a high standard and as such, it was a perfect fit for Thermogenics’ skilled, factory-trained service technicians to service these specialized boilers.
Today, for valve test operations (and for all our customers), we continue the practice of focusing on our customers’ operational objectives. We can repair or maintain an existing boiler, provide an interim rental solution, or build a new, coil-tube boiler to suit specific needs. For us, it’s more about delivering the right solution for the customer’s operations and budget, which is much easier to do when you can “cover all the bases”. Our full portfolio of boiler equipment, parts and service solutions position Thermogenics well to fulfill any steam, hot water or thermal fluid requirements our customers may have.
The continued development of the Company and our successful efforts to renew focus on Thermogenics’ core business prompted some preliminary succession planning to ensure the Company was well positioned to continue its growth in the future. In 2015, we began to seek new partners for the business.
Due to Thermogenics’ industry-leading reputation and recent successes, numerous interested parties presented themselves and in 2016, Ironbridge Equity Partners became part of the Thermogenics family.
Today, we operate under a culture of continuous improvement and remain focused on delivering the highest quality offerings (across all business lines) to our customers. All of this, while growing and developing our team in pursuit of a strategy to expand both our boiler equipment and service business in North America.
